Electronics includes a lot of material so each of the major areas is described on it’s own page:

Computing
Communication
Navigation
Autopilot
Entertainment
Tank level monitoring
Miscellaneous

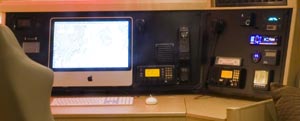

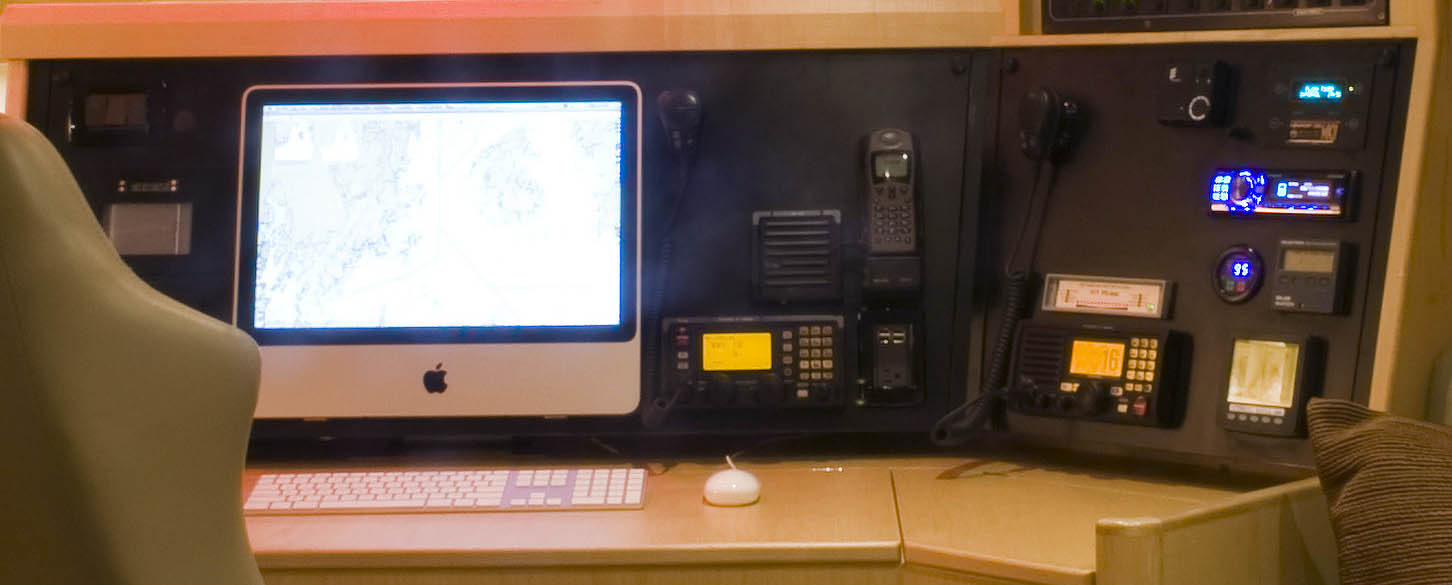

To the right is the navigation station. This is the central point for the electronics. These components have a relatively short life cycle (3-4 years) as they are always being replaced by a next generation which is faster, smarter, smaller and cheaper. For this reason they are mounted to a sheet of formica.

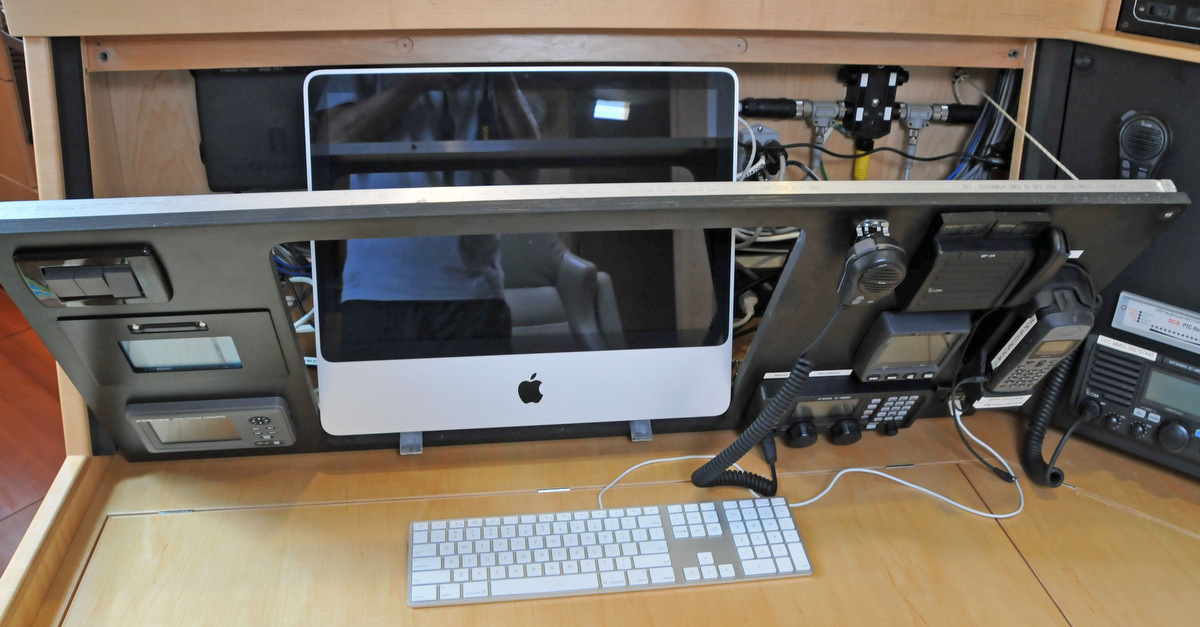

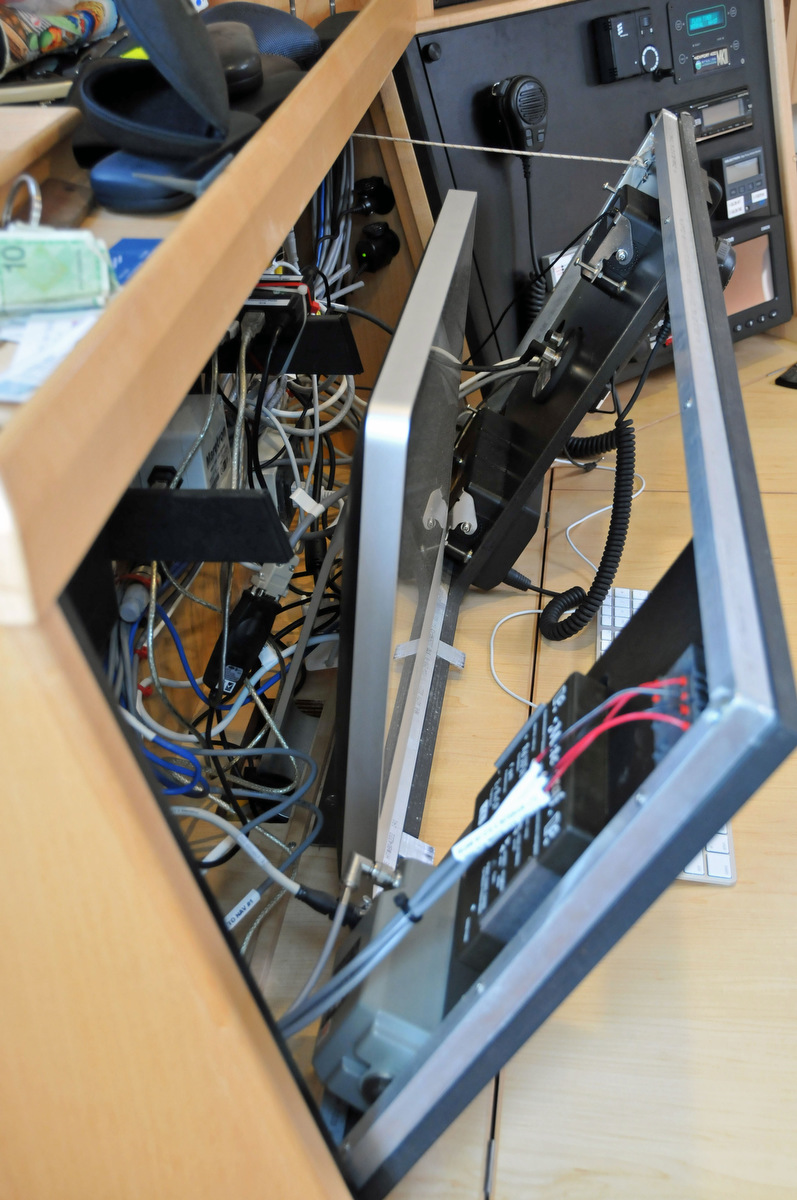

Black formica is used because it is inexpensive, readily available and easy to work with. The formica panels are then mounted to an aluminum frame that hinges forward to provide access to the wiring. Either panel can be replaced fairly easily to
accommodate changes to the electronics. The main panel has already been replaced once.

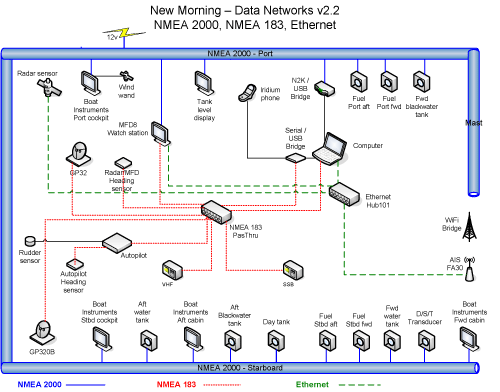

The drawing below is the big picture for the electronics, showing how the various components are interconnected; click on the picture to get a full sized PDF. As you can see, three different networking schemes are necessary to get everything talking to each other. I think this is a case where a picture is worth a thousand words so I’ll let the picture speak for itself.



NM-54-Data-Network-v2
